Hydraulic Metal Balers for Scrap Recycling

AUPWIT Metal Balers – Capabilities & Range

AUPWIT offers a full range of hydraulic metal balers for processing scrap steel, aluminum, copper, stainless steel, and end-of-life vehicle (ELV) materials. Our balers compress loose scrap into dense, uniform bales for easy storage, transport, and smelting.

With compression forces from 63 tons to 1,000 tons and bale sizes from 220×220 mm to 900×350 mm, we cover small recycling stations and large scrap processing centers alike. All models feature Siemens PLC control, remote operation, and optional electric or diesel drive. Our balers meet EU environmental standards for fluid containment and emission control.

Not sure which baler fits your scrap?

Get a Recommendation →

AUPWIT Metal Balers – Capabilities & Range

Metal Baler Series for Different Scrap Types

Each series uses a different bale discharge method. Choose the one that fits your material type, throughput, and floor space.

Triple-Acting Metal Baler

Three-ram compression from multiple directions for very dense, uniform bales of ferrous and non-ferrous scrap.
View Series →
Forward-Out Metal Baler

Y81Q series with forward-out bale discharge — compact, low-investment baling for aluminum cans and UBCs.
View Series →
Push-Out Metal Baler

Y81T series with push-out bale discharge for continuous, high-volume scrap baling.
View Series →
Turn-Out Metal Baler

Y81F series with turn-out bale discharge for heavy scrap, car bodies and bulky materials.
View Series →

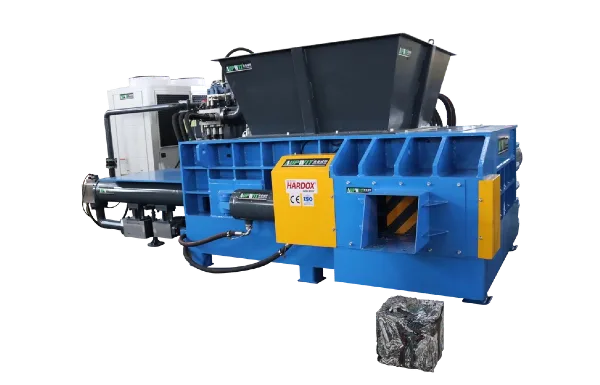

Hopper-Style Automatic Metal Baler

Y81PTZ series with a large-opening hopper for continuous feeding and 24-hour automatic operation.
View Series →
Not Sure Which Metal Baler You Need?

Tell us your scrap type and required capacity. We'll recommend a suitable baler for your application.
Get a Baler Recommendation →

Your material	Recommended series	Reason
Aluminum cans / UBCs	Y81Q-63 to Y81Q-135	Forward-out, compact, low investment
Light metals (aluminum, copper)	Y81Q-160 to Y81Q-250	Higher force for denser bales
Mixed scrap / steel parting	Y81PTZ-100 to Y81PTZ-250	Triple compression for high density
Heavy scrap / car bodies	Y81F-160 to Y81F-400	Turn-out for bulky materials
Continuous high volume	Y81T-250 to Y81T-400	Push-out for non-stop operation
Large recycling centers	Y81F-500 to Y81F-1000	Up to 30,000 kg/h production

Not sure which model fits your scrap? Talk to our engineers →

Classification Model

Automatic Metal Baler
Turn Out Metal Baler
Side Push Out Metal Baler
Forward Out Metal Baler

Model	Chamber size	Bale size	Motor	Oil pump
Y81PTZ-100-22	10007502000mm	220*220mm	22KW-4	HY100
Y81PTZ-100-25	15007502000mm	250*250mm	22KW-4	HY100
Y81PTZ-100-30	15007502000mm	300*300mm	22KW-4	HY100
Y81PTZ-100-40	160010002000mm	400*400mm	30KW-4	HY160
Y81PTZ-125-22	10007502000mm	220*220mm	22KW-4	HY100
Y81PTZ-125-25	15007502000mm	250*250mm	22KW-4	HY100
Y81PTZ-125-30	15007502000mm	300*300mm	22KW-4	HY100
Y81PTZ-125-40	160010002000mm	400*400mm	30KW-4	HY160
Y81PTZ-160-25	10007502000mm	250*250mm	22KW-4	HY100
Y81PTZ-160-30	15007502000mm	300*300mm	30KW-4	HY160
Y81PTZ-160-40	160010002000mm	400*400mm	2*22KW-4	2*HY100
Y81PTZ-160-45	180012002000mm	450*450mm	2*30KW-4	2*HY160
Y81PTZ-200-25	10007502000mm	250*250mm	30KW-4	HY160
Y81PTZ-200-30	15007502000mm	300*300mm	37KW-4	HY180
Y81PTZ-200-40	160010002000mm	400*400mm	2*22KW-4	2*HY100
Y81PTZ-200-45	180012002000mm	450*450mm	2*30KW-4	2*HY160
Y81PTZ-250-25	10007502000mm	250*250mm	37KW-4	HY180
Y81PTZ-250-30	15007502000mm	300*300mm	2*22KW-4	2*HY100
Y81PTZ-250-40	160010002000mm	400*400mm	2*30KW-4	2*HY160
Y81PTZ-250-45	180012002000mm	450*450mm	2*37KW-4	2*HY180
Y81PTZ-315-40	180012002000mm	400*400mm	2*30KW-4	2*HY160
Y81PTZ-315-45	200014002000mm	450*450mm	2*37KW-4	2*HY180
Y81PTZ-400-50	180012002000mm	500*500mm	4*37KW-4	2*HY180
Y81PTZ-400-40	200014002000mm	400*400mm	2*90KW-4	4*HY250
Y81PTZ-500-40	220014002000mm	400*400mm	3*55KW-4	6*HY160
Y81PTZ-800-30	120010002000mm	300*300mm	4*90KW-4	8*HY250

Detailed Display

PDF File

Features of the Metal Balers

Robust Construction
Powerful Hydraulic Cylinders and Rams
PLC Control Panel
Remote Control
Automatic operation
Electric or Diesel Engines
Equipped with cooler or heater

Materials Processed – From UBCs to Car Bodies

AUPWIT balers handle a wide range of scrap materials. The images below show typical input materials before and after baling. From aluminum cans to stainless steel swarf, every material is compressed into dense, stackable bales.

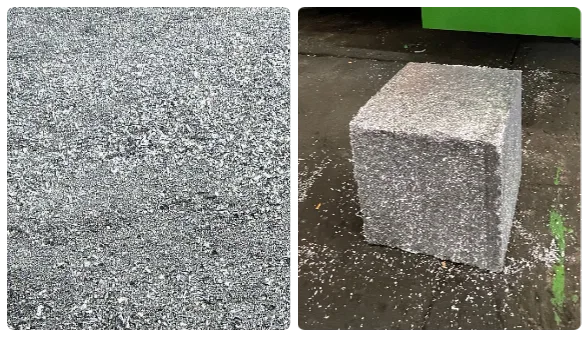

Aluminum chips

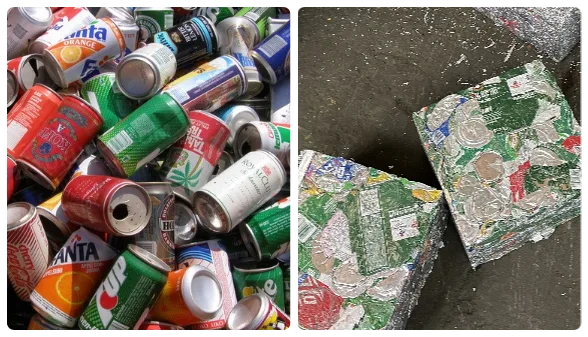

Aluminum cans / UBCs

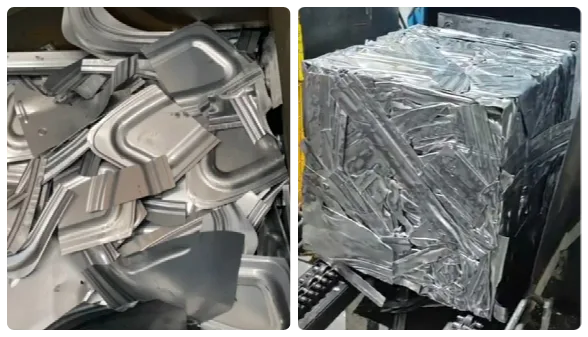

Aluminum extrusions

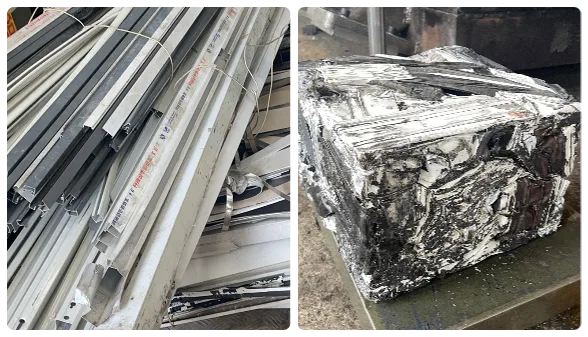

Aluminum profiles

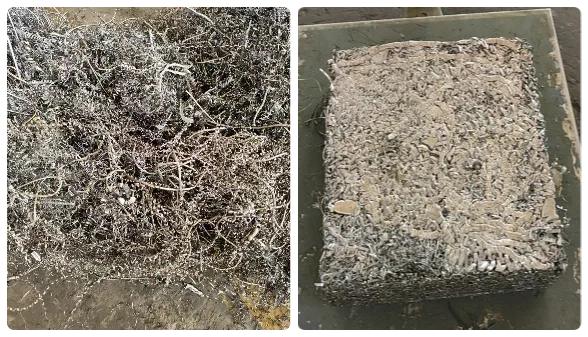

Stainless steel swarf

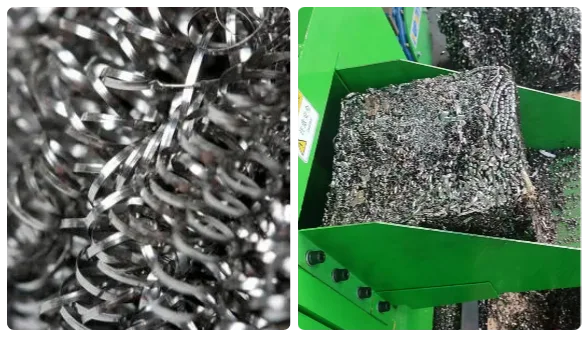

Steel turnings

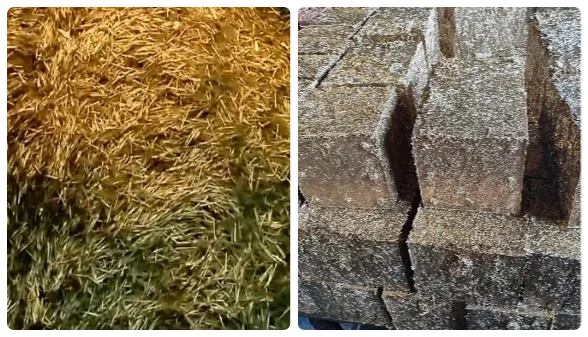

Brass chips

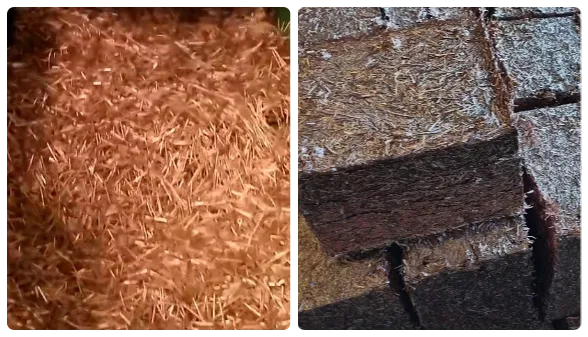

Copper chips

FAQ

What are the different types of metal balers?
+

The choice of baler will depend on the volume, type of scrap metal, and the space limitations of the facility.
What are the power requirements for a metal baler?
+

Power requirements vary depending on the size and type of baler, you can choose diesel engine drive, motor drive or generator for power. Typically they will require a three phase electrical connection.
What are common maintenance issues with metal balers?
+

Common issues include hydraulic leaks, wear and tear on blades, and electrical problems. Follow the our recommendations for lubrication, inspections, and parts replacement.

Model	Nominal Force(kn)	*Press Box Size(LWH)(mm)*	*Bale Size(WH)(mm)**	Production(kg/h)	Cycle time(s)	Power( kw)	Bale-discharging/ operation mode
Y81F-125A	1250	1200700600	300*300	1200-1800	≤110	15	Turn-out Manual or PLC control
Y81F-135	1350	1400900700	350*350	1800-2200	≤120	22
Y81F-160	1600	1400900800	350*350	2000-3000	≤150	22
Y81F-160B	1600	16001200800	400*400	2000-4000	≤150	30
Y81F-200B	2000	18001200900	500*500	3000-5000	≤160	44
Y81F-250B	2500	20001400900	500*500	5000-6300	≤160	44
Y81F-250D	2500	250020001200	500*500	5500-6500	≤160	60
Y81F-315B	3150	200017501200	600*600	5000-7000	≤160	74
Y81F-315G	3150	350030001300	700*700	10000-15000	≤160	90
Y81F-400B	4000	250020001200	600*600	7500-9000	≤180	90
Y81F-400C	4000	300025001300	600*600	8000-10000	≤180	135
Y81F-400D	4000	350030001200	700*700	9000-12000	≤190	135
Y81F-500C	5000	350030001300	700*700	15000-20000	≤180	110
Y81F-630A	6300	350030001300	700*700	15000-20000	≤180	165
Y81F-800B	8000	350030001300	700*700	18000-22000	≤180	165
Y81F-1000B	10000	400030001300	800*800	25000-30000	≤180	220

Model	Nominal Force(kn)	*Press Box Size(LWH)(mm)*	*Bale Size(WH)(mm)**	Production(kg/h)	Cycle time(s)	Power( kw)	Bale-discharging/ operation mode
Y81T-100	1000	1000700550	250*250	1200~1500	≤85	11	Push-out Manual or PLC control
Y81T-125A	1250	1200700600	300*300	1200~1800	≤110	15
Y81T-125Y	1250	1200700600	φ200	1200~1700	≤115	15
Y81T-135	1350	1400900700	350*350	1800~2200	≤120	22
Y81T-160	1600	1400900800	350*350	2000~3000	≤150	22
Y81T-160A	1600	16001000800	400*400	2000~3500	≤150	22
Y81T-160B	1600	16001200800	400*400	2000~4000	≤150	30
Y81T-200A	2000	16001200800	450*450	2500~4500	≤160	30、37
Y81T-200B	2000	18001200900	500*500	3000~5000	≤160	37、44
Y81T-200C	2000	20001400900	500*500	3500~5500	≤160	44
Y81T-250A	2500	18001200900	500*500	4000~6300	≤160	44、60
Y81T-250B	2500	20001400900	500*500	5000~6300	≤160	44、60、74
Y81T-250C	2500	200017501200	500*500	5500~6500	≤160	60
Y81T-250D	2500	250020001200	500*500	5500~6500	≤160	60、74
Y81T-250E	2500	300025001200	500*500	5500~6500	≤160	60、74
Y81T-315A	3150	200014001200	500*500	5000~6500	≤160	60、74
Y81T-315B	3150	200017501200	600*600	5000~7000	≤160	60、74
Y81T-315C	3150	250020001200	600*600	6000-7500	≤180	74
Y81T-315D	3150	300025001300	700*700	7000~8000	≤180	90
Y81T-400A	4000	200016001200	600*600	5000~7000	≤160	74
Y81T-400B	4000	250020001200	600*600	7500-9000	≤180	90
Y81T-400C	4000	300020001300	700*700	8000~10000	≤180	90
Y81T-400D	4000	300025001300	700*700	9000~12000	≤190	135

Model	Nominal Force(kn)	*Press Box Size(LWH)(mm)*	*Bale Size(WH)(mm)**	Production(kg/h)	Cycle time(s)	Power( kw)	Bale-discharging/ operation mode
Y81Q-63	630	600500500	500*200	600-1000	≤75	7.5	Forward-out Manual or PLC control
Y81Q-100	1000	1100600550	600*220	1000-1800	≤85	11
Y81Q-135A	1350	1400600600	600*240	1500-2800	≤80	22
Y81Q-135B	1350	1100600600	600*240	1200-1700	≤100	15, 18.5
Y81Q-160	1600	1450600600	600*300	2000-3000	≤110	22
Y81Q-200	1600	1450700600	700*300	2800-3500	≤110	30
Y81Q-250	1600	1800900700	900*350	4500-6500	≤130	44
